S-Renewable
The combination of diesel engines and batteries provides flexible operation modes depending on different working conditions.

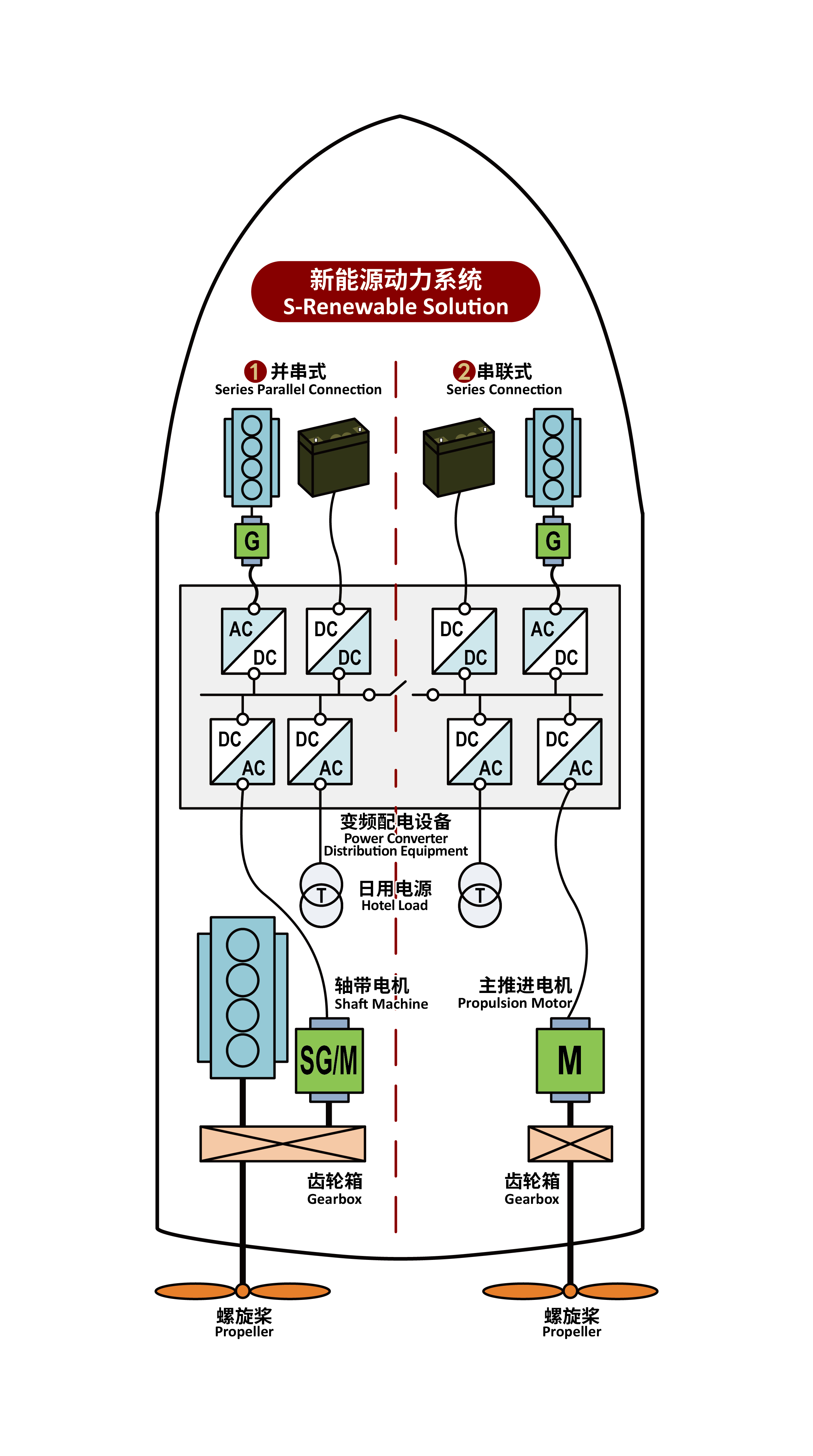

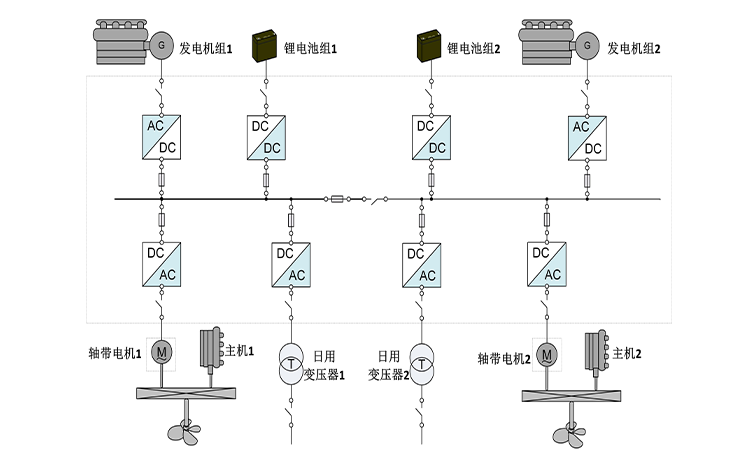

Series parallel connection:
•Hybrid form between diesel engine / generator set / battery;
•Support PTO / PTI / PTH multiple operating modes;
•The battery is used under special conditions (silent operation, emission control area).

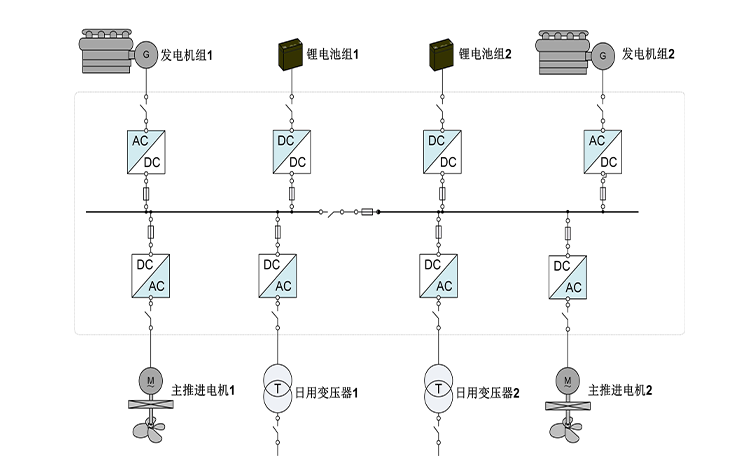

Series connection:
•The generator set and the battery are connected in parallel through the DC bus;
•The gensets can be used in emergency or to extend sailing range;
•The battery further improves the energy efficiency of the generator set, and the vibration noise is significantly reduced.
Classic Case
Applicable vessel type: inner-river passenger vessels, tugboats, pilot vessels, inner-river container vessels, inner-river bulk carriers and fishing vessels etc.
Dongjiang Industrial Inland River Five-star Luxury Cruise
Largest luxury river cruise vessel in China
Diesel generator set power: 1250 kW × 4
Super capacitor: 300 kW × 2
Main propulsion power: 1680 kW × 2
“Qing Gang Tuo 1” 5200 HP diesel electric tugboat
The first oil-electric hybrid intelligent tugboat in China
Diesel unit: 220kW×1 Battery capacity: 2764.4kWh
Propulsion power: 600kW×2
