S-DE

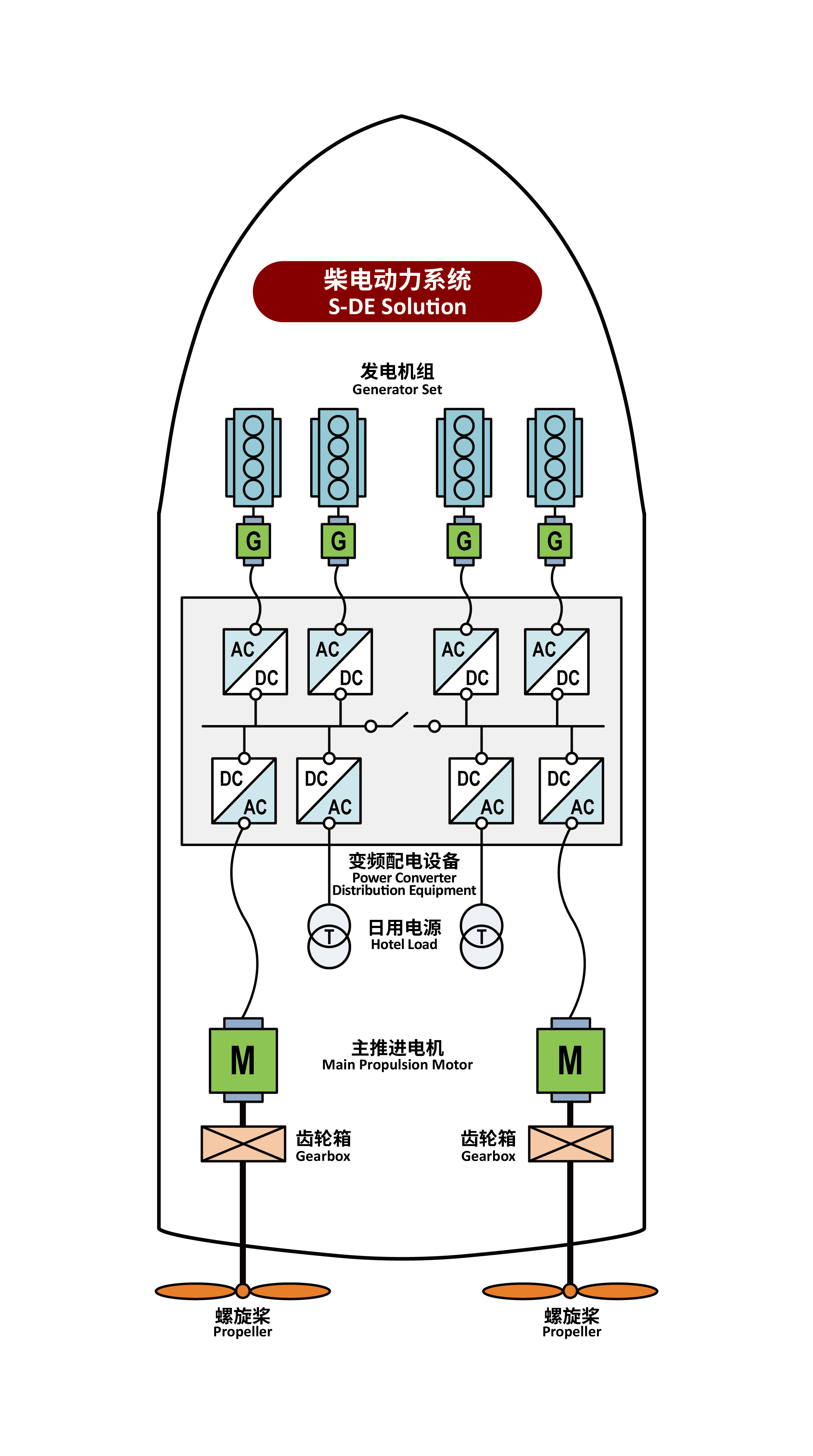

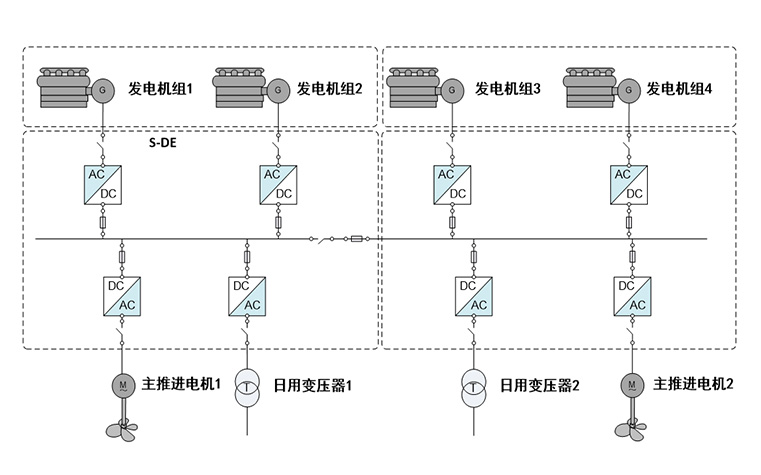

The diesel generator sets supply electrical power to the motor driving the propeller with optimized energy utilization, lower noise and improved maneuverability.
•The generator power efficiency is significantly improved;
•Equipment adopts electrical connection, flexible layout and high space utilization;
•Mainly electric drive, vibration and noise are significantly reduced, and and increase comfort;
•The system has strong dynamic response capability to fit various working conditions.
Classic Case
Applicable vessel type: Research vessels, merchant ships (up to 10 thousand DWT), engineering vessels (PSV/AHTS/WTIV/SOV etc.)
‘ShenKuo’ research vessel
The first common DC grid application in China
Diesel generator set power: 1100 kW × 2, 400 kW × 2
Main propulsion power: 1000 kW × 2
Bow thruster power: 300kW × 1
“Hailong Fengcai” 1200 T WTIV
Domestic large-capacity medium-voltage offshore wind power project
Diesel engine set power: 2688kW×5
Bow propulsion motor 2400kW×2, Stern propulsion motor 2400kW×2
